Home > Industrial Ball Valve >

SS304 Wafer Ball Valve Q71F with Electric Driving Mode 30-Day Return Refunds Guarantee

Product Categories

Xuteng Valve Group Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

SS304 Wafer Ball Valve Q71F with Electric Driving Mode 30-Day Return Refunds Guarantee

Model NO. : Q71F

Driving Mode : Pneumatic,Manual,Electric

Nominal Pressure : PN1.0-32.0MPa

Channel : Straight Through Type

Structure : Floating Ball Valve

Type : Floating Ball Valve

Function : Blow-Down Valve, Relief Valve, Bypass-Valve

Temperature : Normal Temperature

Standard : ANSI

Application : Industrial Usage, Water Industrial Usage, Household Usage

Size : DN15-100

Transport Package : Carton

Specification : CE/SGS/ISO9001

Trademark : Xuteng

Origin : China

HS Code : 8481801090

Supply Ability : 10000PCS/Week

Package Size : 100.00cm * 100.00cm * 100.00cm

Package Gross Weight : 180.000kg

Media : Oil, Water ,Gas,Acid

Material : SS304

Connection Form : Wafer

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : Zhejiang China

Certification : CE/SGS/ISO9001

MOQ : 1

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Price : negotiate

Contact Now

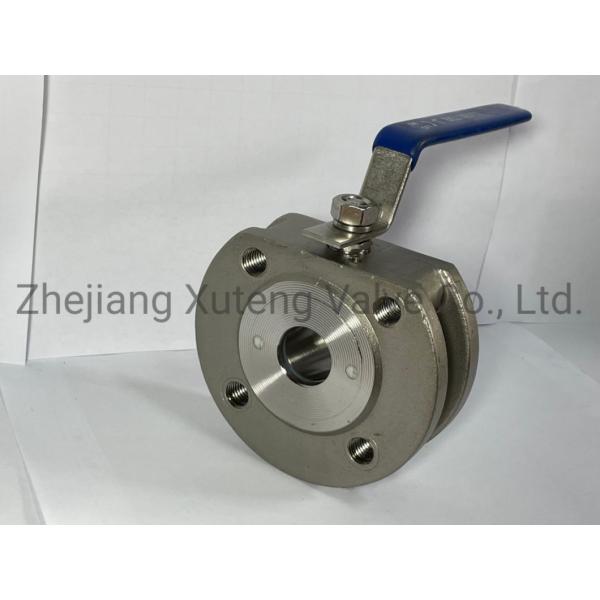

SS304 Wafer Ball Valve Q71F with Electric Driving Mode 30-Day Return Refunds Guarantee

Wafer Type Ball Valve
1-PC Body Type(2-PC Body for DN125 and Over)
DN15-DN100 for Forged Body; DN125-DN200 for Cast Body
DN15-DN100 for 1-PC body Type; DN125 and over for 2-PC Body Type
Full Bore
Size: 1/2"-8"
Materials: WCB, CF8, CF8M
Working Pressure: 1.6MPa, 2.5Mpa
Working Temperature: <200°
Applicable Medium: Water, Oil, Gas, Acid, etc
Face to Face: GB/T 9113 Q/SYF012-96
Flanged Standard to ANSI B 16.5
Checked and Tested per API 598
Handle or Pneumatic Actuated
Available for ISO 5211 Mounted Pad

Factory drawing:

warehouse

Processing zone

Detection area

Certificate:

FAQ

Q : Are you a factory or a trading company?
A : We are a R & D factory.

Q : Which country do you export to?
A : We can export to any country according to buyer's need.

Q : Do you accept the customized order?
A : YES!

Q : What is your main market?
A : Southeast Asia, Middle East, North America, South America, Europe, etc.

Q : Can you give me a discount?
A: As you know, we are the manufacturer, so please trust us that our prices are competitive.
If the quantity is large, we can consider giving you a discount.

Q : If the product has quality problems, what will you do?
A : We will be responsible for all quality problems.

Q :What is your payment term?
A :1.T/T, 30% down payment, balance paid before shipment.
2. Letter of credit.

Q: If the product has quality problems, what will you do?
A: We will be responsible for all quality problems.

Zhejiang Xuteng Valve Co., Ltd.
Address :Wenzhou City, Zhejiang Province, China

SS304 Wafer Ball Valve Q71F with Electric Driving Mode 30-Day Return Refunds Guarantee Images
